Factory Replacement Parts for Dana 30 Front Axle - YJ Wrangler

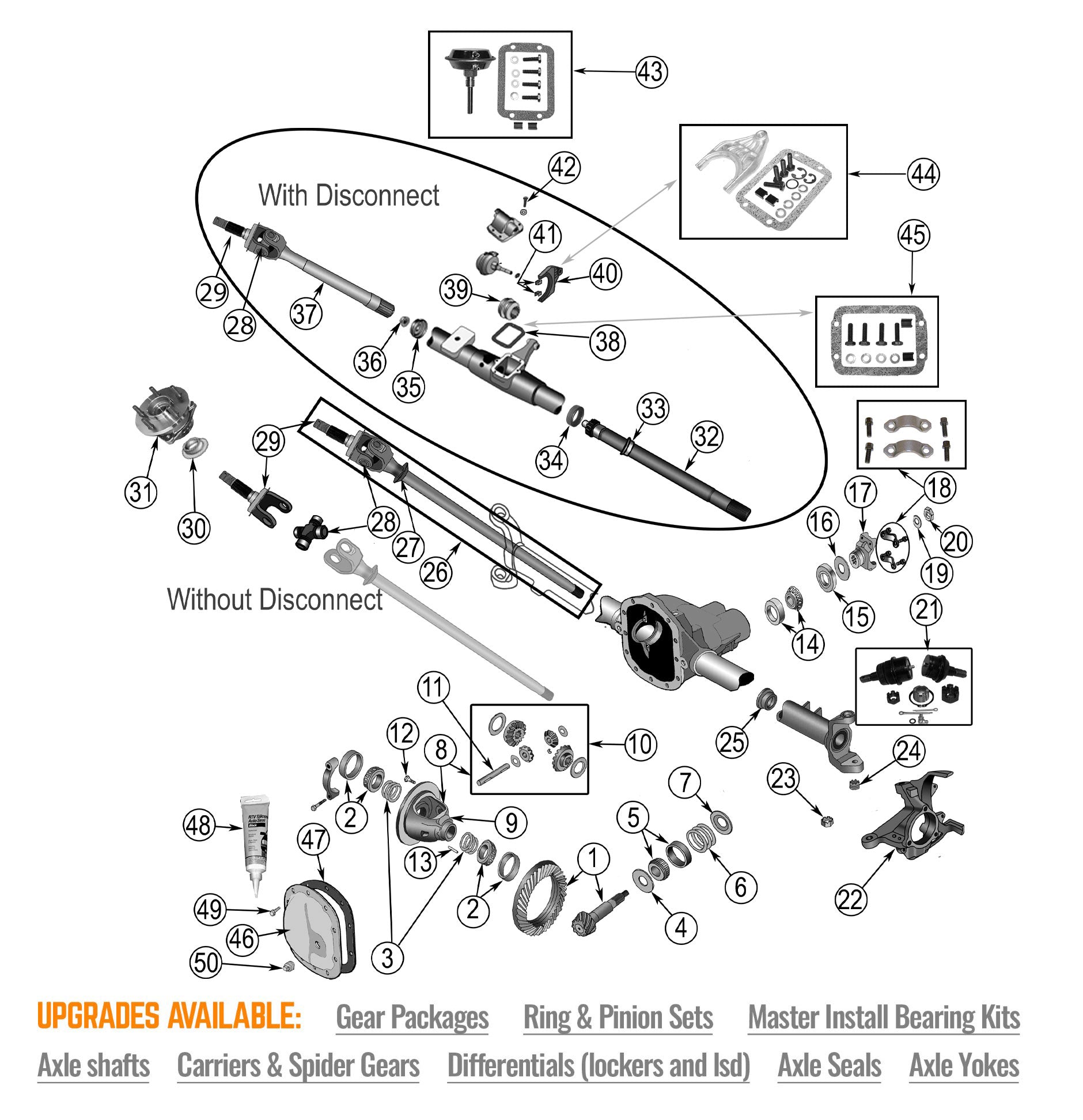

Diagram #
Item Name Items number
Status Price
1
DANA 30 RING & PINION SET GEAR and INSTALLATION KIT - 3.07 RATIO - REVERSE ROTATION
Items number 83500187
✔ In stock
Price $875.00
1
Ring and Pinion Gear Set (3.55 Ratio) for 84-99 XJ Cherokee, 87-95 YJ Wrangler, 86-92 MJ Comanche
Items number 83505480
✘ Not available
Price $973.99
1
Ring and Pinion Gear Set (3.73 Ratio)for 84-99 XJ Cherokee, 87-95 YJ Wrangler, 86-92 MJ Comanche
Items number 4746074
✘ Not available
Price $566.99
1
Ring and Pinion Gear Set (4.10 Ratio) for 84-99 XJ Cherokee, 87-95 YJ Wrangler, 86-92 MJ Comanche
Items number 83502353
✘ Not available
Price $438.99
1
Ring and Pinion Gear Set (4.56 Ratio) for 84-99 XJ Cherokee, 87-95 YJ Wrangler, 86-92 MJ Comanche
Items number 83503424
✘ Not available
Price $747.99
2
Differential Carrier Bearing Kit
Items number J8126500
✔ In stock
Price $55.99
3
Differential Carrier Shim Kit for Dana 30 Front Axle
Items number 83500191
✘ Not available
Price $67.99
4
Front Inner Pinion Oil Slinger
Items number 3893982
✔ In stock
Price $2.99
5
Inner Pinion Bearing Set
Items number J8126499
✔ In stock
Price $43.99
6
Dana 30 Pinion Shim Set
Items number 83500192
✔ In stock
Price $83.99
7
Dana 30 Pinion Baffle
Items number J0934937
✔ In stock
Price $4.99
8
Differential Case Assembly for Dana 30 (3.55 & Down Ratios)
Items number 5252582
✘ Not available
Price $1,012.99
8
Differential Case Assembly for Dana 30 (3.73 & Up Ratios)
Items number 5252590
✘ Not available
Price $406.99
9
Differential Case for Dana 30 (3.55 & Down Ratios)
Items number J8126515
✘ Not available
Price $249.99
9
Differential Case for Dana 30 (3.73 & Up Ratios)
Items number J8126496
✔ In stock
Price $184.99
10
Standard Differential Spider Gear Set Kit - Dana 30
Items number 5252591
✔ In stock
Price $115.99
11
Dana 30 Differential Shaft
Items number 5003840AA
✘ Not available
Price $25.99
12
Ring Gear Bolt Kit for Dana 30 Front Axle
Items number 4720891
✔ In stock
Price $17.99
13
Dana 30 Differential Shaft Locking Pin
Items number J0636360
✔ In stock
Price $1.99
14
Dana 30 Outer Pinion Bearing Set
Items number J8124052
✔ In stock
Price $75.99
15
Dana 30 Pinion Seal for 84-86 XJ Cherokee w/Dust Slinger on Yoke
Items number J0998092
✔ In stock
Price $12.99
15
Dana 30 Pinion Seal for 86-00 XJ Cherokee with Yoke Slinger
Items number 83503390
✔ In stock
Price $12.99
16
Outer Pinion Slinger for 87-95 YJ Wrangler
Items number J0636566
✔ In stock
Price $1.99
17
Dana 30 Axle Yoke for 87-95 YJ Wrangler
Items number 83503388
✔ In stock
Price $49.99
18
U-Joint Strap and Bolt Kit - Hex Head
Items number 4006698K
✔ In stock
Price $6.99
18
U-Joint Strap and Bolt Kit - 12 Point Head
Items number 4006928K
✔ In stock
Price $7.99
19
Pinion Nut Washer
Items number J4004913
✘ Not available
Price $3.99
20
3/4" Pinion Nut - Non Flanged
Items number J0801367
✘ Not available
Price $3.99
21
Steering Ball Joint Kit for 87-95 YJ Wrangler
Items number 83500202
✔ In stock
Price $59.99
22
Passenger Side Steering Knuckle for 90-95 YJ Wrangler
Items number 52067576
✔ In stock
Price $133.99
22
Driver Side Steering Knuckle for 90-95 YJ Wrangler
Items number 52067577
✔ In stock
Price $133.99
25
Dana 30 Inner Axle Seal
Items number J8121781
✔ In stock
Price $6.99
25
Dana 30 Inner Axle Seal (O.D. 2.29")
Items number 83500199
✔ In stock
Price $6.99
25
Dana 30 Inner Axle Seal (O.D. 2.125")
Items number 83503504
✔ In stock
Price $7.49
26
Driver Side Dana 30 Axle Shaft Assembly - NON-ABS
Items number 4874303
✔ In stock
Price $229.99
26
Passenger Side Dana 30 Axle Shaft Assembly - NON-ABS
Items number 4874302
✔ In stock
Price $252.99
27
Dana 30 Axle Shaft Oil Slinger
Items number J8126232
✔ In stock
Price $7.99
27
Dana 30 Axle Shaft Oil Slinger - Plastic
Items number 4797769
✔ In stock
Price $5.99
28
Front Axle 260X Series U-Joint
Items number J8136616
✔ In stock
Price $27.99
28
Front Axle 297X Series U-Joint
Items number J8126638
✔ In stock
Price $26.99
28
Dana Spicer Front Axle 297X Series U-Joint
Items number 8126638SP
✔ In stock
Price $58.99
29
Outer Axle Shaft Dana 30 - NON-ABS
Items number 83500184
✔ In stock
Price $107.99
29
Outer Axle Shaft Dana 30 - WITH-ABS
Items number 4713190
✔ In stock
Price $107.99
30
Outer Axle Shaft Slinger for Dana 30
Items number 83500201
✔ In stock
Price $6.99
31
Front Hub Assembly
Items number 53000228
✔ In stock
Price $119.00
31
Front Hub Assembly for 2-Piece Composite Rotor
Items number 53007449
✔ In stock
Price $127.99
32
Dana 30 Front Intermediate Axle Shaft
Items number 5252594
✔ In stock
Price $92.99
33
Dana 30 Front Intermediate Axle Shaft Collar
Items number 5252687
✔ In stock
Price $14.99
34
Dana 30 Front Intermediate Axle Shaft Bearing
Items number J8133622
✔ In stock
Price $36.99
35
Dana 30 Inner Axle Seal (O.D. 2.29")
Items number 83500199
✔ In stock
Price $6.99
35
Dana 30 Inner Axle Seal (O.D. 2.125")
Items number 83503504
✔ In stock
Price $7.49
36
Dana 30 Right Outer Shaft Needle Bearing
Items number J8134213
✔ In stock
Price $19.99
36
Dana 30 Right Outer Shaft Bushing
Items number 5252686
✔ In stock
Price $14.99
37
Driver Side Dana 30 Axle Shaft Assembly - NON-ABS
Items number 4874303
✔ In stock
Price $229.99
37
Passenger Side Dana 30 Axle Shaft Assembly with Disconnect - NON-ABS
Items number 5252145
✔ In stock
Price $299.99
37
Driver Side Dana 30 Axle Shaft Assembly - WITH-ABS
Items number 4874307
✘ Not available
Price $253.99
37
Passenger Side Dana 30 Axle Shaft Assembly - With Disconnect WITH-ABS
Items number 4741033
✘ Not available
Price $523.99
38
Dana 30 Disconnect Housing Gasket
Items number 4137732
✔ In stock
Price $5.99
39
Dana 30 Disconnect Shift Collar
Items number 83504813
✘ Not available
Price $98.99
40
Dana 30 Disconnect Shift Fork - Aluminum
Items number 83503695
✔ In stock
Price $36.99
40
Dana 30 Disconnect Shift Fork - Heavy Duty Cast Iron
Items number 4137727
✔ In stock
Price $36.99
41
Dana 30 Disconnect Shift Fork Insert
Items number 4137731
✔ In stock
Price $3.99
42
Dana 30 Disconnect Housing Bolt (1/4"-20 Thread x 7/8" Length)
Items number 4137734
✔ In stock
Price $1.99
43
Dana 30 Axle Hub Vacuum Disconnect - 3 Port
Items number 83503113
✔ In stock
Price $98.99
43
Dana 30 Axle Hub Vacuum Disconnect - 2 Port
Items number 4506116
✔ In stock
Price $98.99
44
Dana 30 Disconnect Shift Fork Kit - Aluminum
Items number 5252599
✔ In stock
Price $26.99
44
Dana 30 Disconnect Shift Fork Kit - Heavy Duty Cast Iron
Items number RT23004
✔ In stock
Price $32.99
45
Dana 30 Disconnect Shift Fork Clip Kit
Items number J8133708
✔ In stock
Price $5.99
46
Dana 30 Differential Cover
Items number 4713451
✔ In stock
Price $124.99
47
Dana 30 Differential Cover Gasket
Items number J8120360
✔ In stock
Price $7.99
48
RTV Silicone Gasket Sealant
Items number J8993317
✔ In stock
Price $15.99
49
Differential Cover Bolt - 5/16"-18 x .625 Length Flanged Bolt
Items number J0273573
✔ In stock
Price $2.99
50
Differential Cover Plug - 1/2"-14
Items number J4004751
✔ In stock
Price $4.99
51
Rusty's Gear Special - 84-99 XJ / 87-95 YJ (D30 REV Front / D35 Rear) 4.10 Ratio (SKU: D30-410F / R30RMKT / D35-411 / R35JRMKT)
Items number GEARSP30R35-410
✔ In stock
Price $530.00
Rusty's Gear Special - 84-99 XJ / 87-95 YJ (D30 REV Front / D35 Rear) 4.56 Ratio (SKU: D30-456F / R30RMKT / D35-456 / R35JRMKT)
Items number GEARSP30R35-456
✔ In stock
Price $530.00
Rusty's Gear Special - 84-99 XJ / 87-95 YJ (D30 REV Front / D35 Rear) 4.88 Ratio (SKU: D30-488F / R30RMKT / D35-488 / R35JRMKT)
Items number GEARSP30R35-488
✔ In stock
Price $530.00
51
Yukon Gear & Axle Complete Gear Package - 84-99 XJ / 87-95 YJ (D30 REV Front / D35 Rear) 4.56 Ratio
Items number YGK001
✔ In stock
Price $589.99
Yukon Gear & Axle Complete Gear Package - 84-99 XJ / 87-95 YJ (D30 REV Front / D35 Rear) 4.88 Ratio
Items number YGK002
✔ In stock
Price $589.99
52
Motive Gear Dana 30 Reverse Cut Ring & Pinion Set 4.10
Items number D30-410F
✔ In stock
Price $185.00
Motive Gear Dana 30 Reverse Cut Ring & Pinion Set 4.56
Items number D30-456F
✔ In stock
Price $185.00
Motive Gear Dana 30 Reverse Cut Ring & Pinion Set 4.88
Items number D30-488F
✔ In stock
Price $185.00
53
Motive Gear Overhaul Kit - Model 30
Items number R30RMKT
✔ In stock
Price $115.00
54
Ten Factory Dana 30 '27' Spline Chromoly Axles
Items number MG22148
✔ In stock
Price $525.00
54
Ten Factory Dana 30 '27' Spline Chromoly Axles w/ Disconnect Eliminator
Items number MG22145
✔ In stock
Price $525.00
54
Yukon 4340 Chromoly Dana 30 Axle Kit - '84-'01 XJ / '97-'06 TJ / '87-'95 YJ
Items number YA W24110
✔ In stock
Price $1,102.89
54
Yukon 4340 Chromoly Dana 30 Axle Kit w/ Yukon Super Joints - '84-'01 XJ / '97-'06 TJ / '87-'95 YJ
Items number YA W24112
✔ In stock
Price $1,429.89
54
Ultimate Dana 30 CV Axle Set for Jeep Wrangler YJ ('86-'96), TJ & LJ ('97 to '06), Cherokee XJ ('85-'02) & Grand Cherokee ZJ ('92-'98)
Items number CVJ30
✔ In stock
Price $1,299.95
55
Genuine Spicer Differential Case - Dana 30 Low Ratio Carrier - 3.73 & Up Ratios
Items number 706008X
✔ In stock
Price $109.00
55
Genuine Spicer Side & Spider Gear Overhaul Kit - Dana 30
Items number 10020714
✔ In stock
Price $109.00
56
Powertrax No-Slip Taction System - Dana 30
Items number 9204302700
✘ Not available
Price $329.00
56
Powertrax Lock-Right Locker - Dana 30
Items number 2210-LR
✔ In stock
Price $260.00
56
Powertrax Grip Pro Limited Slip Traction System - Dana 30 - 3.73 & UP
Items number GT443027
✔ In stock
Price $495.00
56
ARB AirLocker DANA 30 - 27 Spline - 3.54&DOWN
Items number RD101
✔ In stock
Price $1,091.00
56
ARB AirLocker DANA 30 - 27 Spline - 3.73&UP
Items number RD100
✔ In stock
Price $1,091.00
56
Yukon Grizzly Locker for Dana 30, 27 spline, 3.73 & Up
Items number YGLD30-4-27
✔ In stock
Price $899.00
57
Ten Factory Axle Tube Seals - Dana 30 / 44 - JK / TJ / XJ / YJ
Items number MG21103
✔ In stock
Price $59.00
58
Rusty's Heavy Duty Dana 30 U-Bolt Style Yoke
Items number HD30Y
✔ In stock
Price $64.00
