The Rusty's Off Road long travel suspension is going to be tough to beat! It takes you places other vehicles can't go; over logs, big boulders or over just about anything else on the trail. We have applied race technology and over 4 years of research and development to deliver a suspension system with enough articulation to keep your rig firmly planted even over the most radical terrain.
The system starts with you being able to choose what style of control arm system you want, Rusty's offers the choice of a Radius-Style Control Arms, a 4 Link System, a 3 Link System and Rusty's Competition 4 Link System. All the systems are completely adjustable, both the long lower arm as well as the upper. The arms utilize Clevite factory rubber control arm bushings at one end to ensure that no noise or vibrations are transmitted through the unibody and at the other end Rusty's rebuildable Flex Joints for superior flex and articulation. The arms are constructed of 2" and 1.5 diameter D.O.M. tubing, so go ahead and bash them against rocks and ledges because they can take the abuse and keep right on going! The Rusty's Competition 4 Link System was designed specifically for racing applications or desert pre-running and may not be the best selection for a daily driver.
The new Rusty's control arms bolt to a new 1/4-inch thick laser-cut steel 3-piece crossmember with a removable center section. This new design offers easier service and maintenance and is also surrounded by Rusty's frame reinforcement brackets. The 3/16" laser cut CNC formed reinforcement brackets are located on both the outside and the inside of the unibody and basically sandwich it, tying the unibody and the new crossmember together as one solid unit. This design distributes the extreme loads from the suspension over a much larger area of the unibody and assures many years of extreme four-wheeling without any structural damage to the unibody. The crossmember's design does not reduce ground clearance and also drops the transfer case relieve driveline angles. Our optional Transfer Case Skid Plate can be easily added for further protection and support.
Due to the thinness of the Jeep unibody, we've designed our long-arm kits to be completely bolt-on with the exception of the rear spring perches, which must be welded to the axle on the MJ. Although it is possible to weld to the unibody, the longevity of the weld in questionable. The unibody is only 16 guage (.060 in.) and the heat of a weld stresses the thin metal. Even though the weld itself may not crack, the unibody around it may. While the unibody is welded from the factory, this was done with precision robotically-controlled welders with heat sensors to create welds that were much more precise than even the most skilled human welder. Our bolt-on systems are not only more durable than a weld-on system due to the extensive reinforcement involved, but they are also much easier to install. Our clamped/sleeved mounting system uses 1" x3/16" thick tubes through the unibody, which creates a larger surface area that distributes stresses over a larger area than a weld-on installation. In addition, we use adjustable control arms that not only allow easy caster adjustment but also incorporate pivot points designed for suspension flex, which further eliminates stress on the unibody mounts.

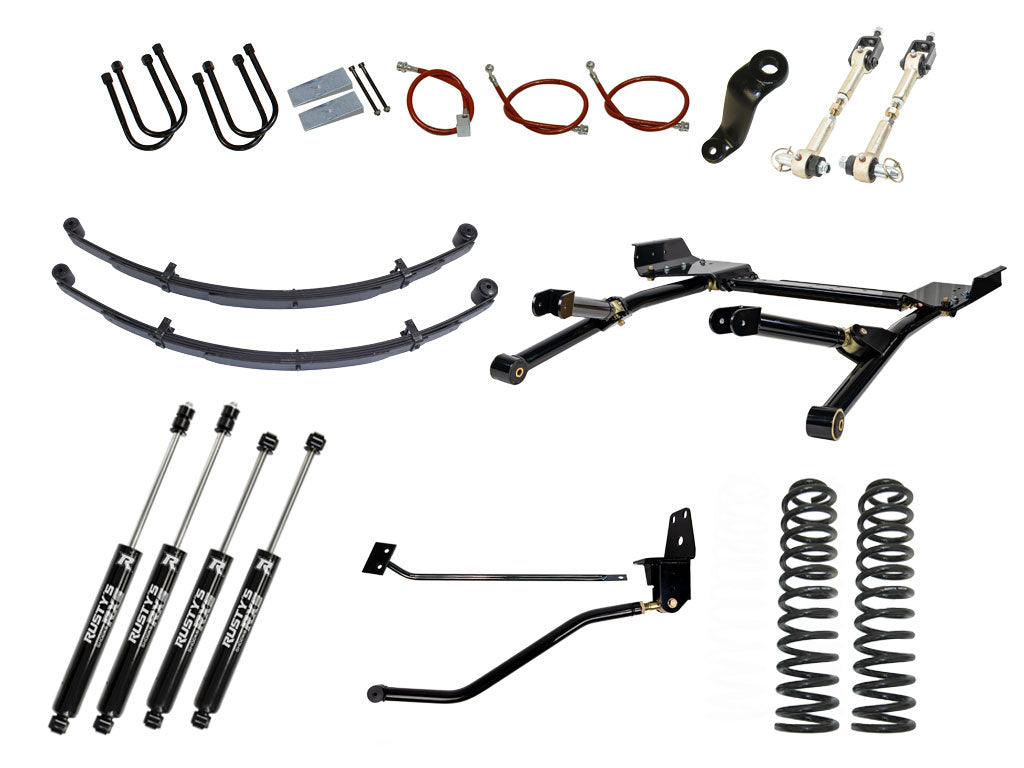

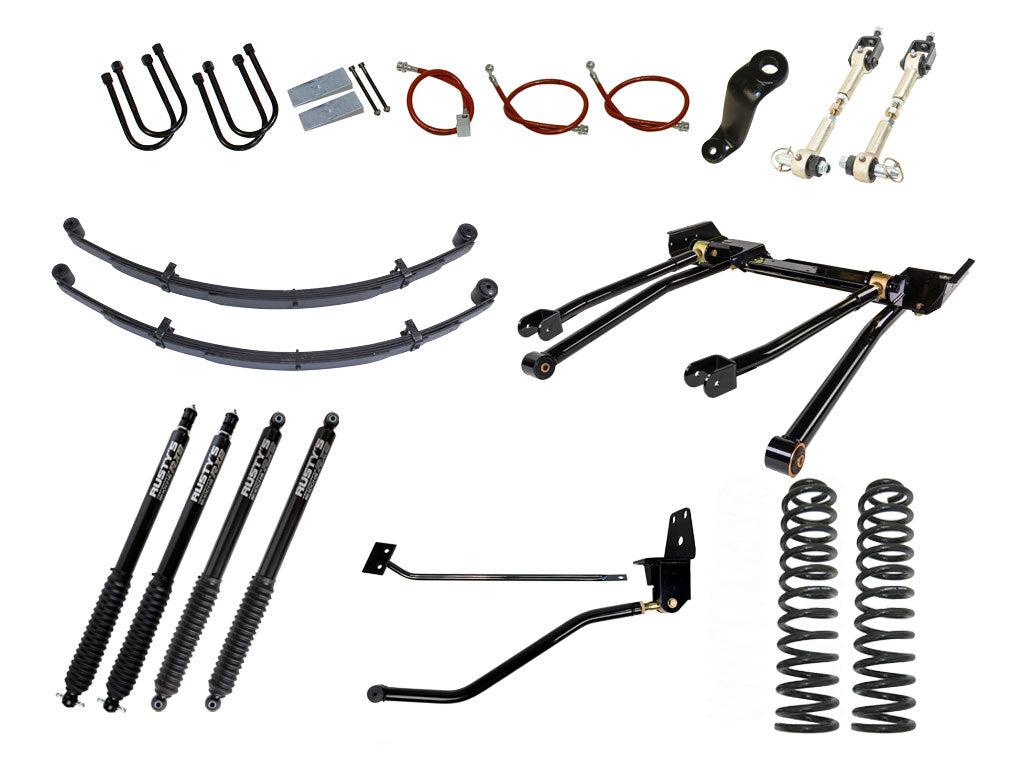

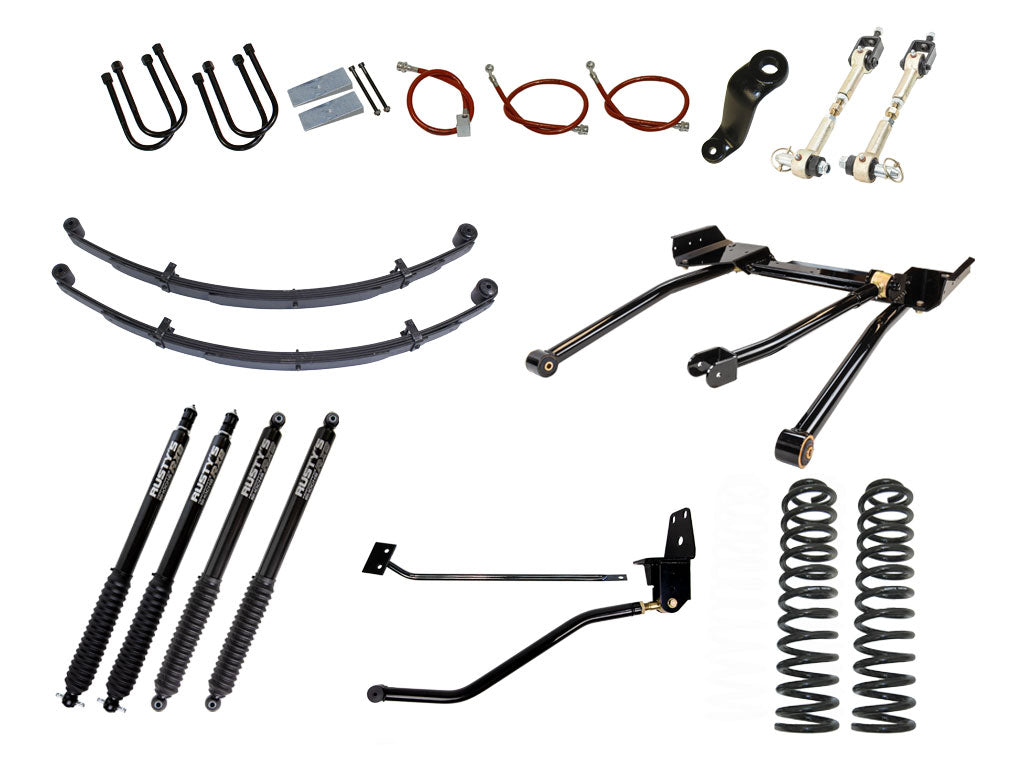

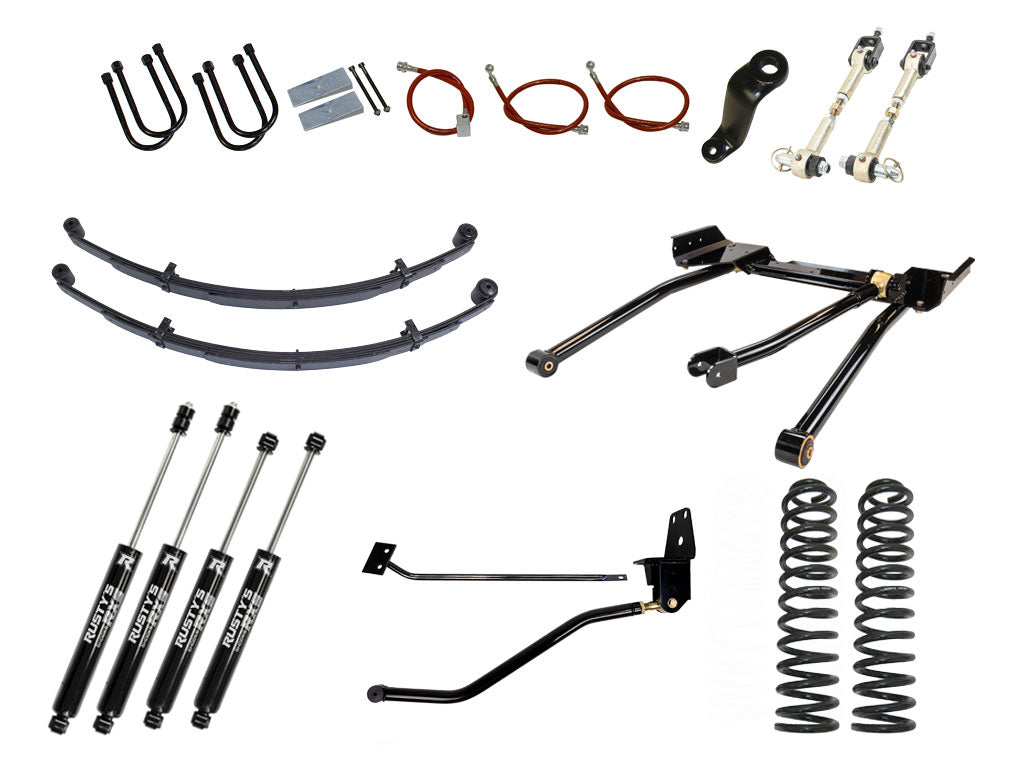

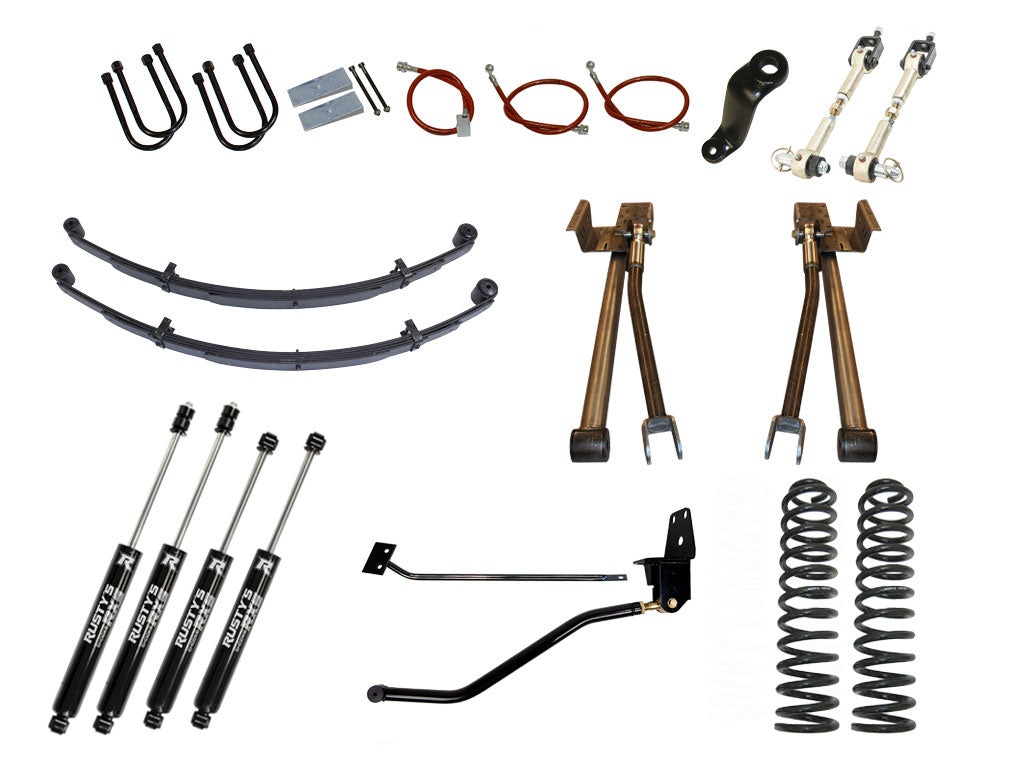

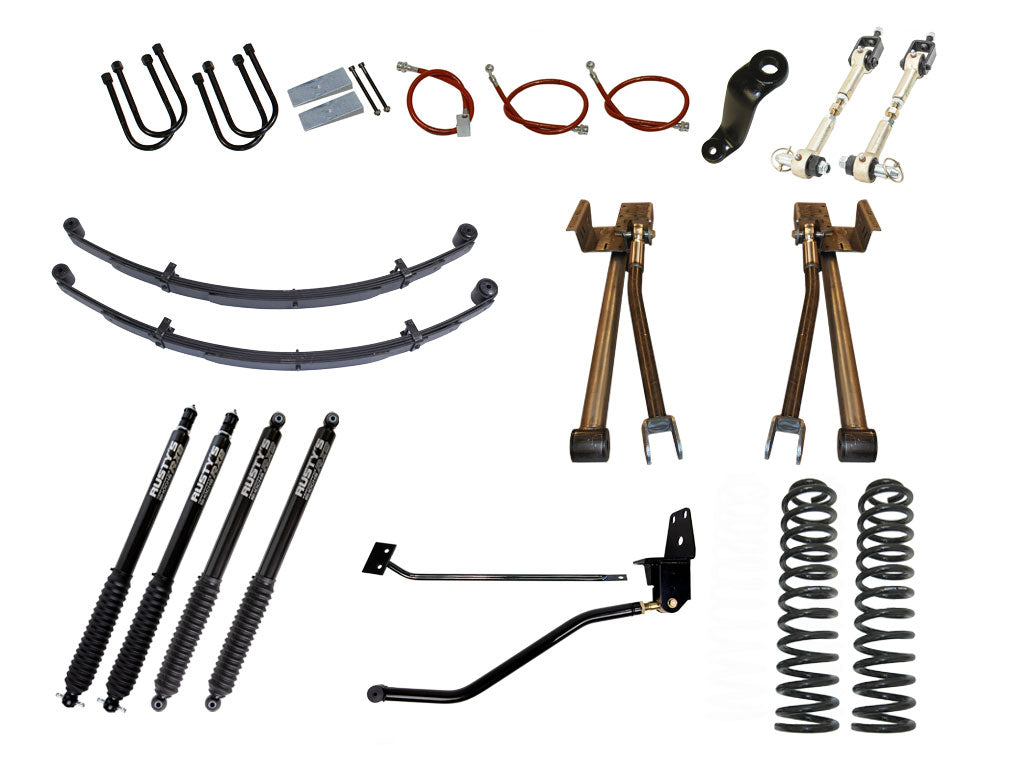

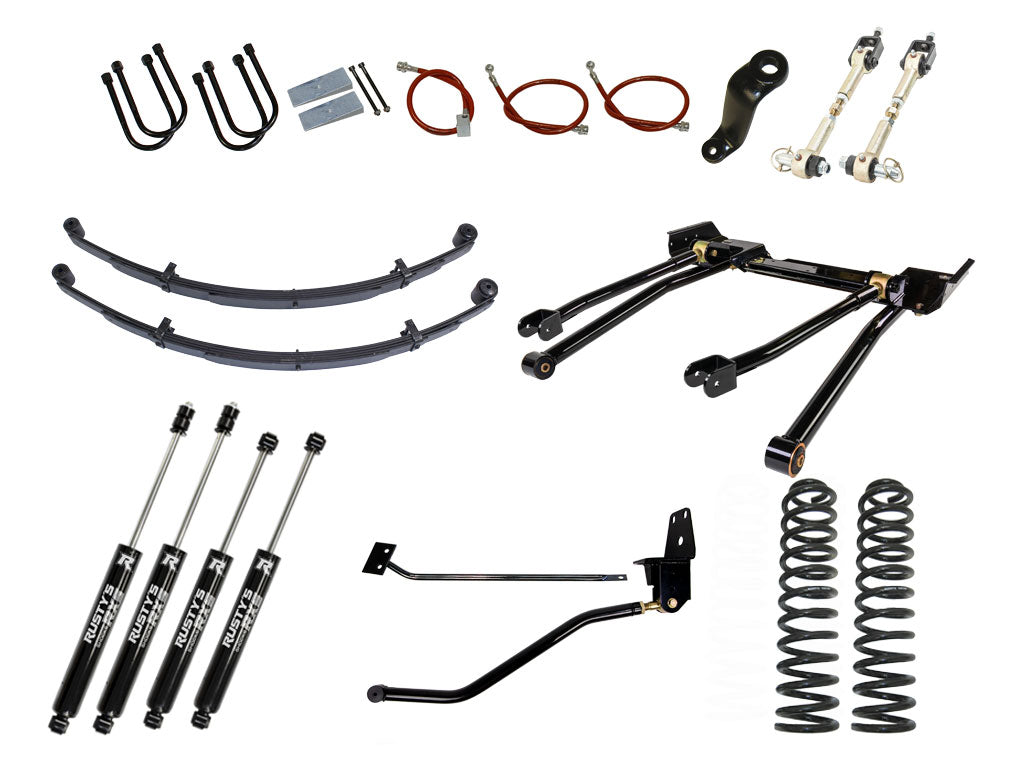

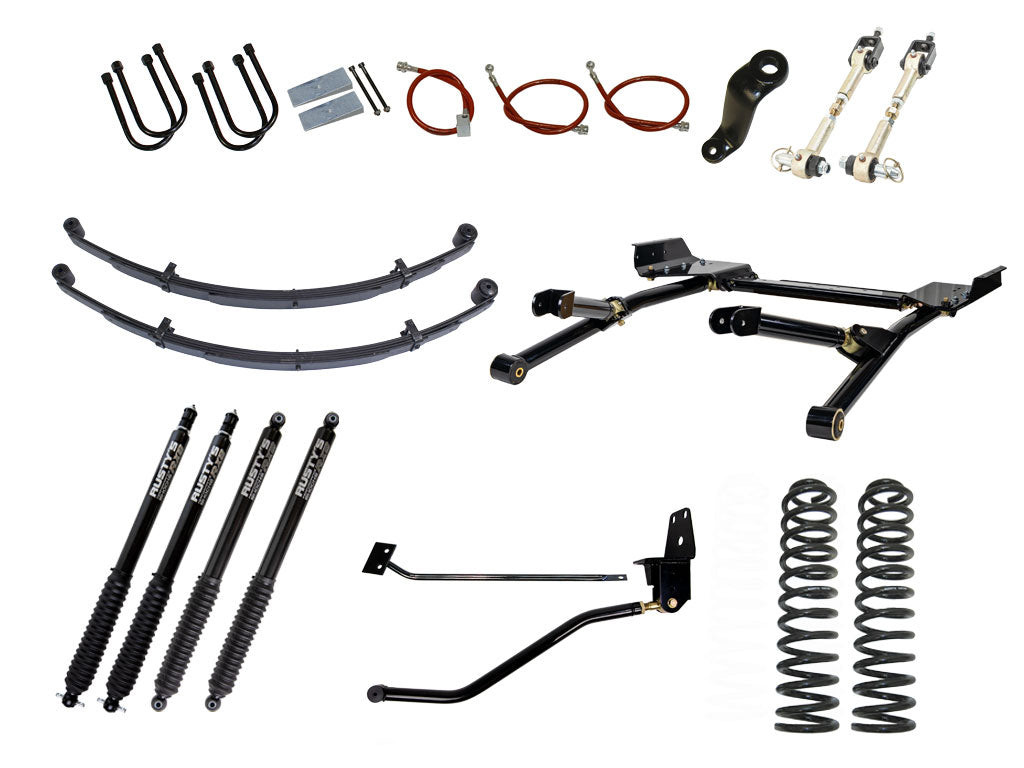

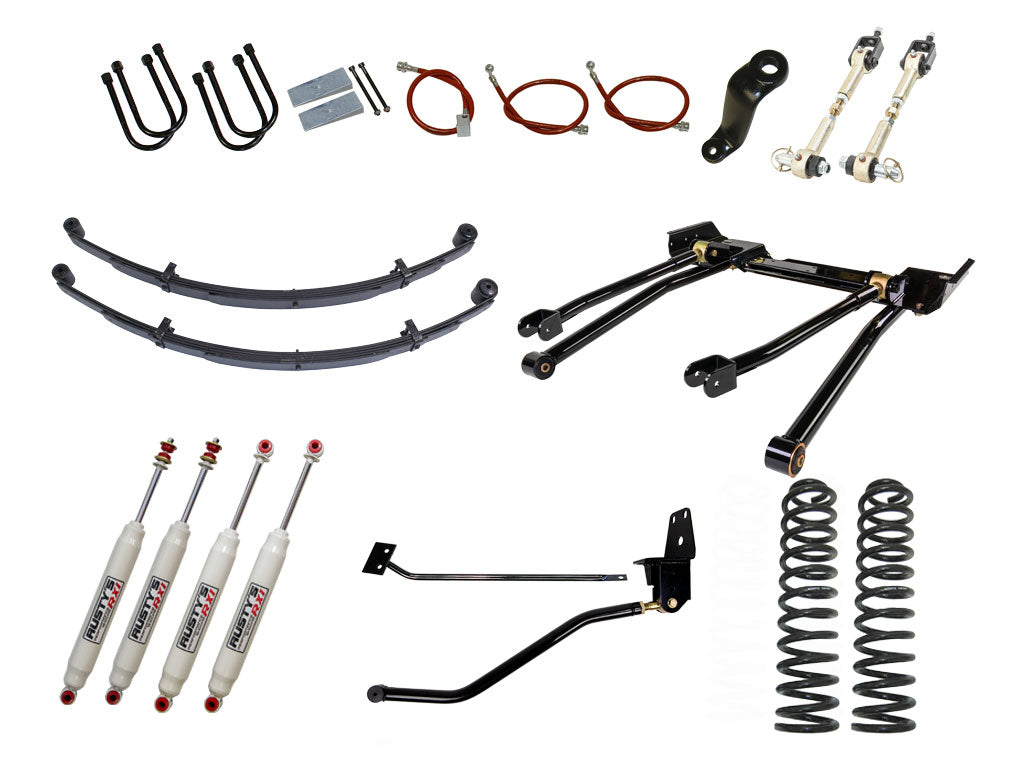

• Front 6.5" coil springs
• Rear 6.5" leaf springs
• Front hydro performance shocks
• Rear hydro performance shocks
• 3" drop pitman arm
• HD track bar
• Rusty's Frame Brace
• Rusty's front sway bar disconnects
• Front & rear stainless steel braided brake lines
• Grade 8 U-Bolts
• Steel 6 degree shims
LONG ARM ASSEMBLY:
• HD cross member
• Adjustable long arm
• Adjustable radius arm
• Frame reinforcement (inner & outer)
• Hardware Kit
• Flex Joint Wrench
NOTE: When lifting the XJ Cherokee 6 inches or more, Rusty's highly recommends the use of a Slip Yoke Eliminator Kit to prevent driveline vibrations. This is available for only the NP231 and NP242 transfer cases. We also offer a Combo Kit that includes a quality CV driveshaft built by Tom Woods Driveline.
NOTE: 2000-2001 Jeep XJ Cherokee models require the use of Part# 52001180 Transmission Mount to be installed with this suspension system.
PLEASE NOTE: THIS SUSPENSION KIT IS NOT COMPATIBLE WITH VEHICLES EQUIPPED WITH THE PEUGEOT MANUAL TRANSMISSION.
