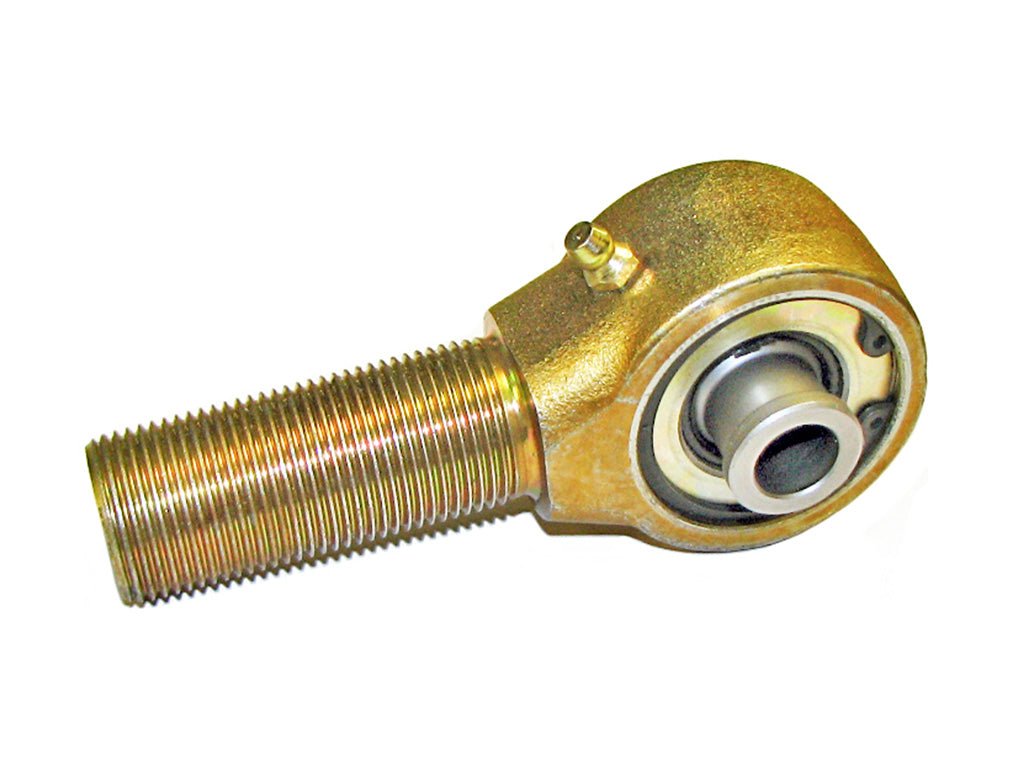

The 2" narrow forged Johnny Joint® rod end was designed originally for use in our JK front and rear trac bars, however, it is now available separately as a replacement part or for use in any type of universal application for custom builders. This joint is a male rod end style forging that accepts Johnny Joint® internals that are unique to this narrow joint. This version features a 1/2" thru bolt hole, a 2" mounting width, 2 1/4" of 1"-14 right hand threads on the shank, and is greasable through the outer shell.
Body Type | Forged Steel (Threaded) |
Body Series | 2 inch OD, Narrow Body |
Body Width | 1.2 inches |
Thread Size | 1 inch, 14 TPI |
Thread Direction | Right Hand |
Shank Length | 2 1/4 inch |
Mount Width | 2.000 inches |
Hole Diameter | .500 inch (1/2) |
Misalignment | 34° Total |
Lubrication Method | External zerk fitting located on joint body |
