Genuine Spicer Dana 30 Right Hand Axle Shaft Assembly

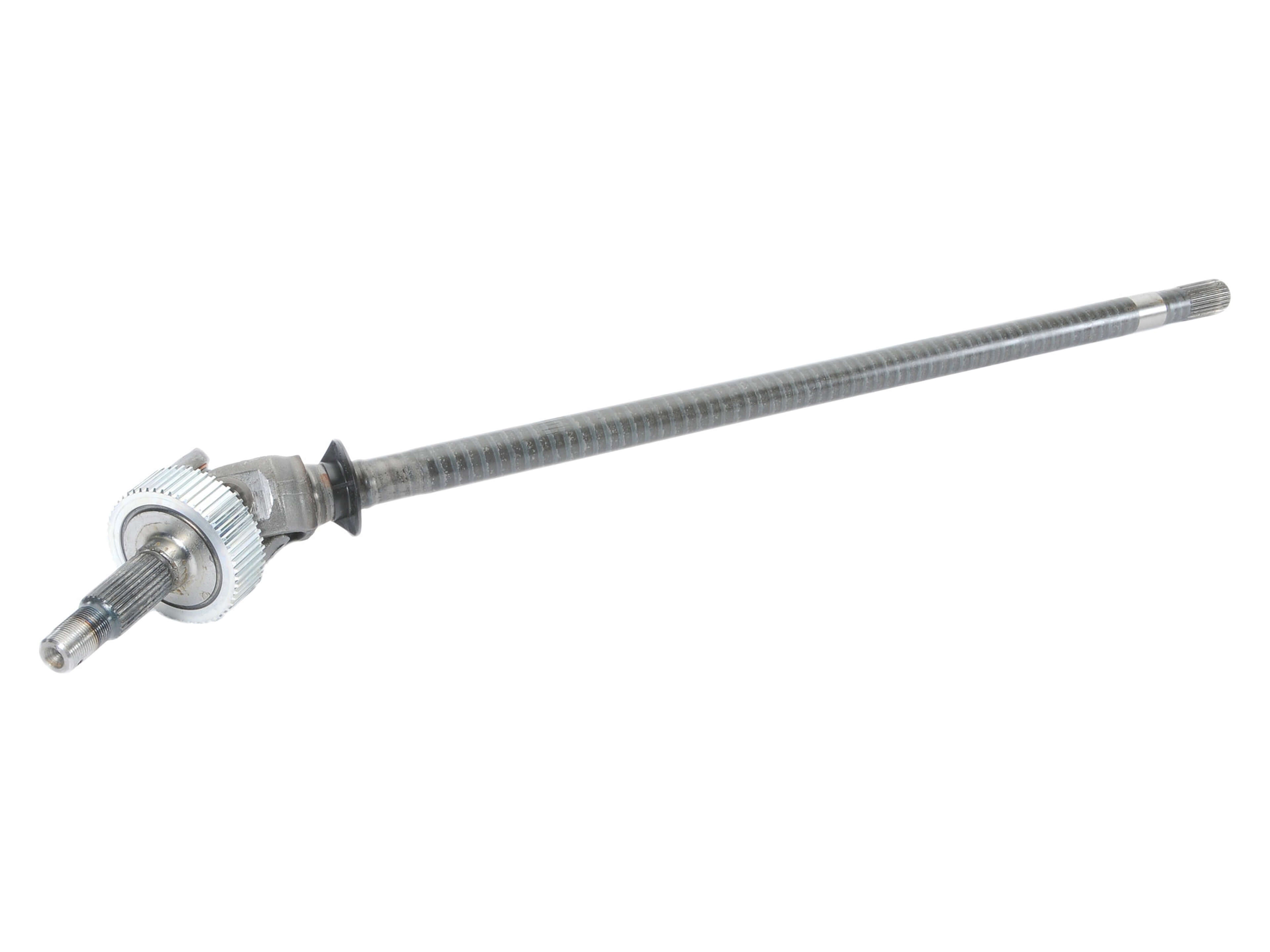

Genuine Spicer Dana 30 Right Hand Axle Shaft Assembly - TJ / XJ / YJ / ZJ

$338.99

Brand: Dana Spicer

Availability: In Stock
Part Number: 75815-2X

Description

Description

This is a complete axle shaft assembly for the Right Hand (passenger or "long" side) axle shaft assembly. Comes complete with inner shaft, outer stub shaft, and 5-760X axle joint. The inner shaft is 27 spline.

This assembly is a direct replacement for TJs and non-center disconnect XJs. This shaft is a great upgrade for center axle disconnect XJs and YJs when used with Rusty's block off plate and seal kit #ABK-12. This assembly is also a great upgrade for ZJs equipped with problematic CV-style front axle shafts.

Measurements
Inner shaft 32.40"
Outer shaft :6.11"
Overall length: 38.52"

Brand	Spicer
Material	Steel
Length (IN)	38.510
Spline Count	27
ABS Sensor Ring Included	Y
ABS Sensor Ring Installed	Y
Axle Shaft Included	Y
Axle Type	Complete Assembly
Bearing Included	N
Full-Floating Or Semi-Floating	Semi-Floating
Inner Axle Included	Y
Outer Axle Included	Y
Quantity	1
Retainer Ring Included	N
Seal Included	Y
Seal Kit Included	N
U-Joint Included	Y
Wheel Bearing Included	N
Wheel Bolt Prep Kit Included	N
Wheel Nuts Included	N
Wheel Studs Included	N
Length (MM)	978.154
Package Type	EACH
Package Qty	1
Weight	17.99 LB
