Rusty's Control Arm Frame Mount - 33 Degree

$134.00

Rusty's understands there are plenty of fabricators out there that would much rather design and...

Rusty's understands there are plenty of fabricators out there that would much rather design and build their own suspension system rather than using off-the-shelf kits, and these customers often turn to Rusty's for the more difficult-to-fabricate items such as control arms and custom brackets. To help the custom fabricator, Rusty's has expanded our line of control arm brackets and mounts to include our new Control Arm Frame Mount, which can be utilized many different ways.

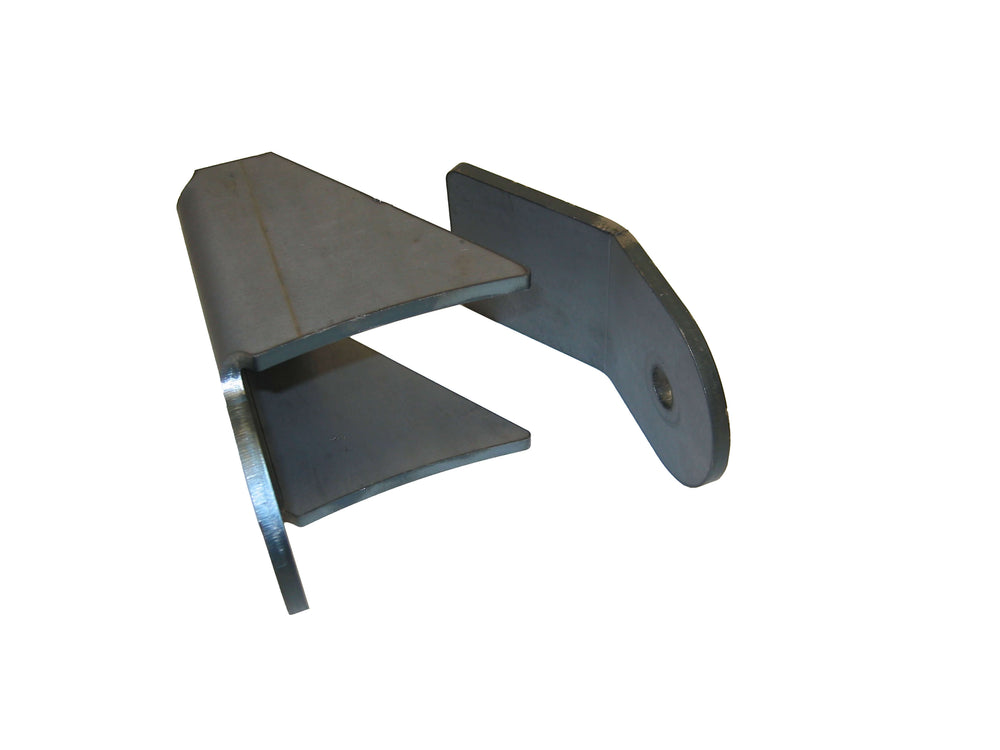

Rusty's 33-degree Control Arm Frame Mount starts with 1/4" thick laser-cut steel that is CNC formed for a precision fit. This bracket is designed to place the control arm mount at an 33-degree angle in relation to the frame. This angle is commonly used for the upper mounts on a triangulated four-link. With light modifications, this angle can be changed to whatever angle is preferred. Further, the inner tab of the control arm mount is shipped loose; this enables the end user to set the spacing for the mount to accommodate the width of whatever control arm joint is being used for the project, whether it's our own Forged Flex Joints, Heim joints, traditional bushings, or most other suspension joints on the market. Simply set the desired spacing, then weld the inner tab in place!

Rusty's 33-degree control arm frame mounts can be used as stand-alone mounts but are designed to be used in conjunction with our 11-degree mounts for proper triangulation. These mounts offer a clean, professional look to a custom suspension and cut down hours of fabrication time!

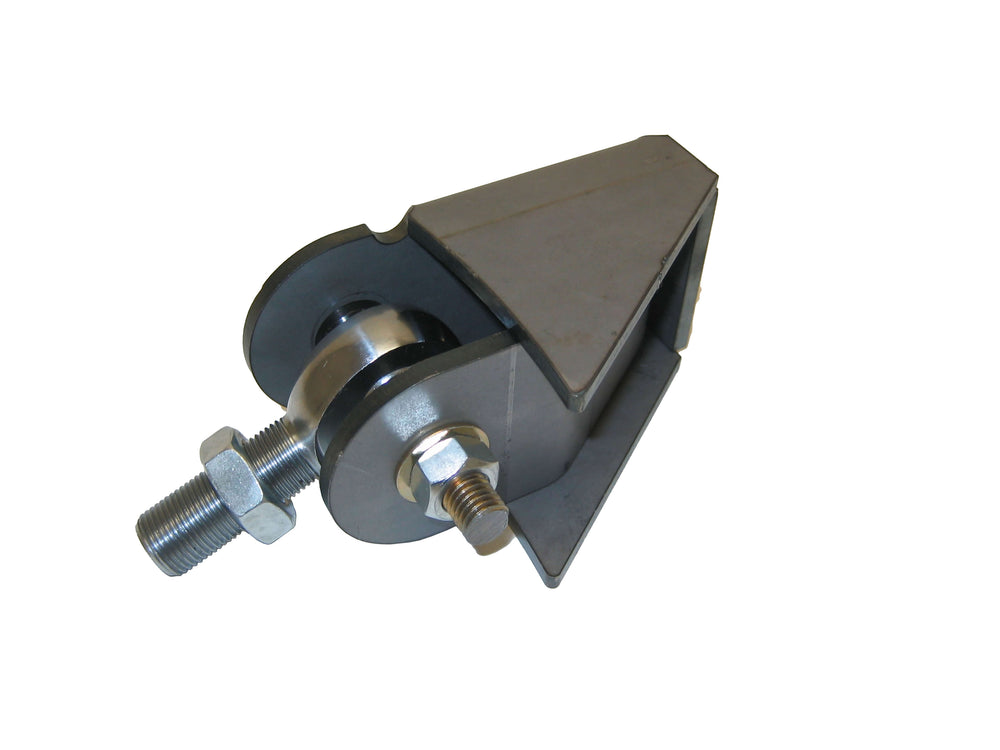

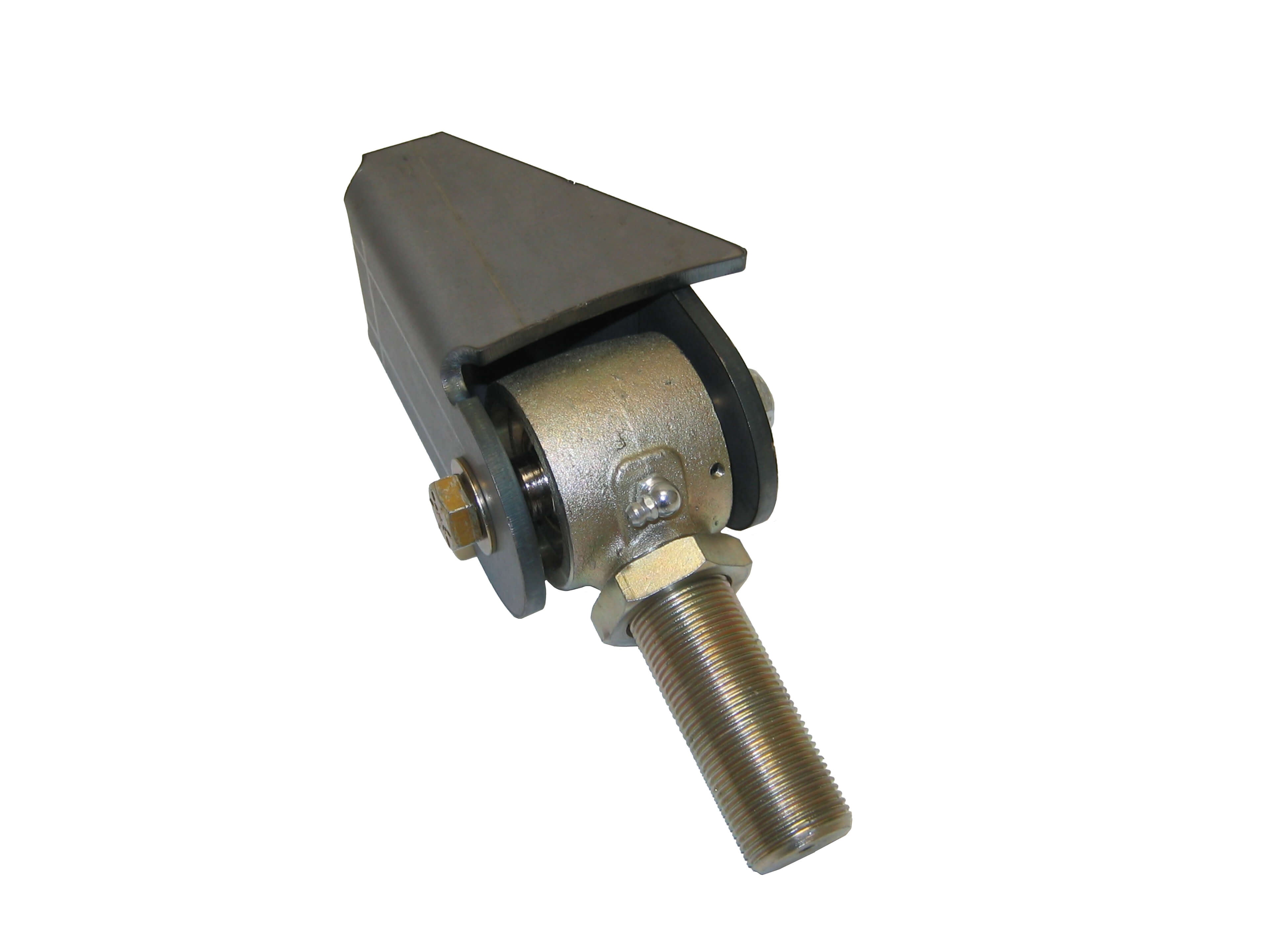

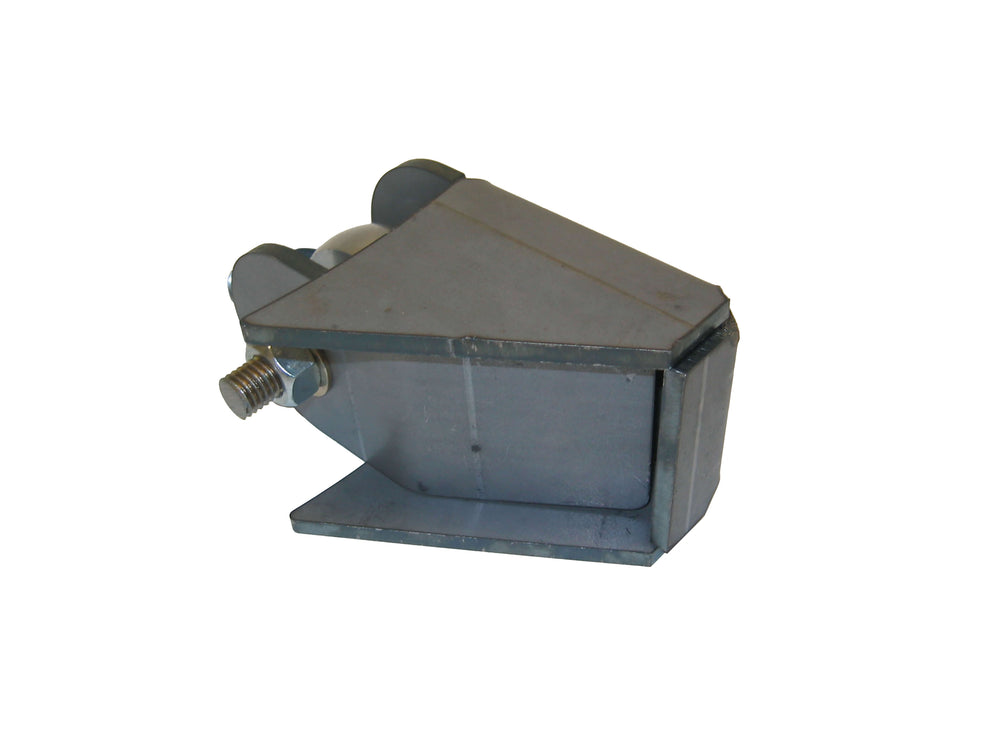

Please note these brackets are sold in pairs and consist of the brackets only; the control arm joints are shown for reference only.

Key Features:

• Constructed of 1/4" thick laser-cut steel

• CNC formed for a precision fit

• Places control arm mount at an 33 degree angle in relation to the frame

• Inner tab is shipped loose to accommodate different suspension joint widths

• 9/16" mounting hole

• Sold in pairs

$134.00
