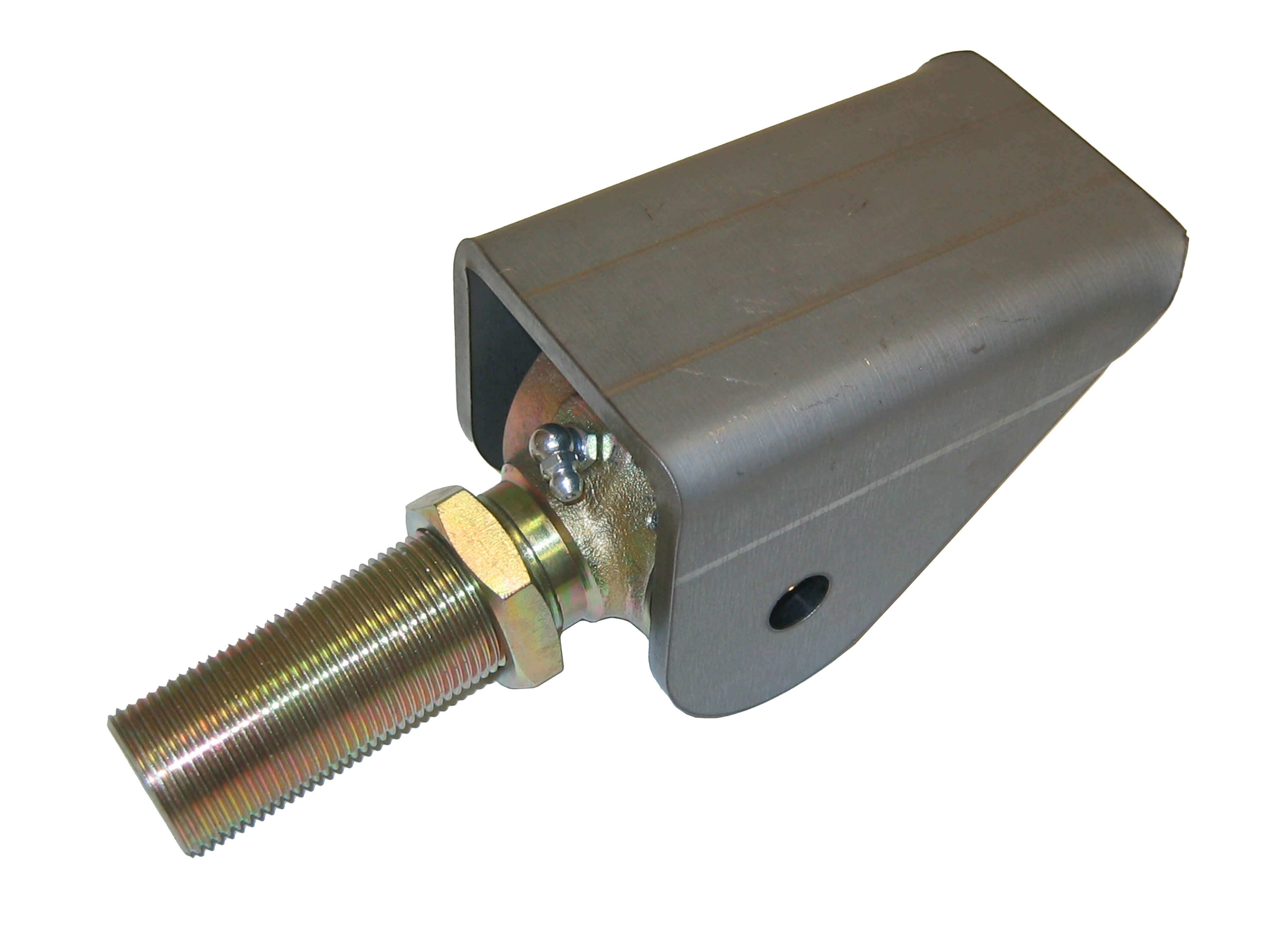

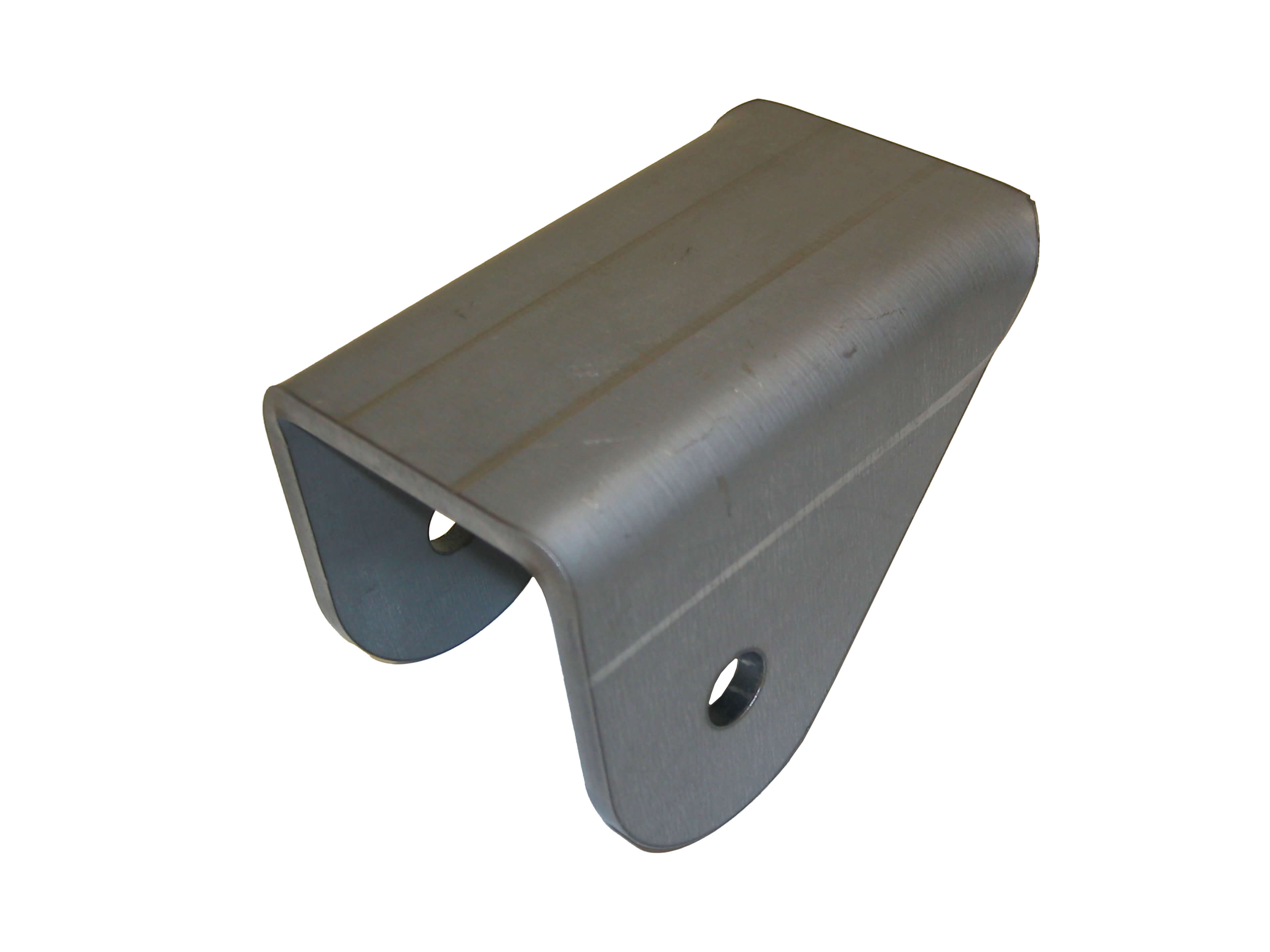

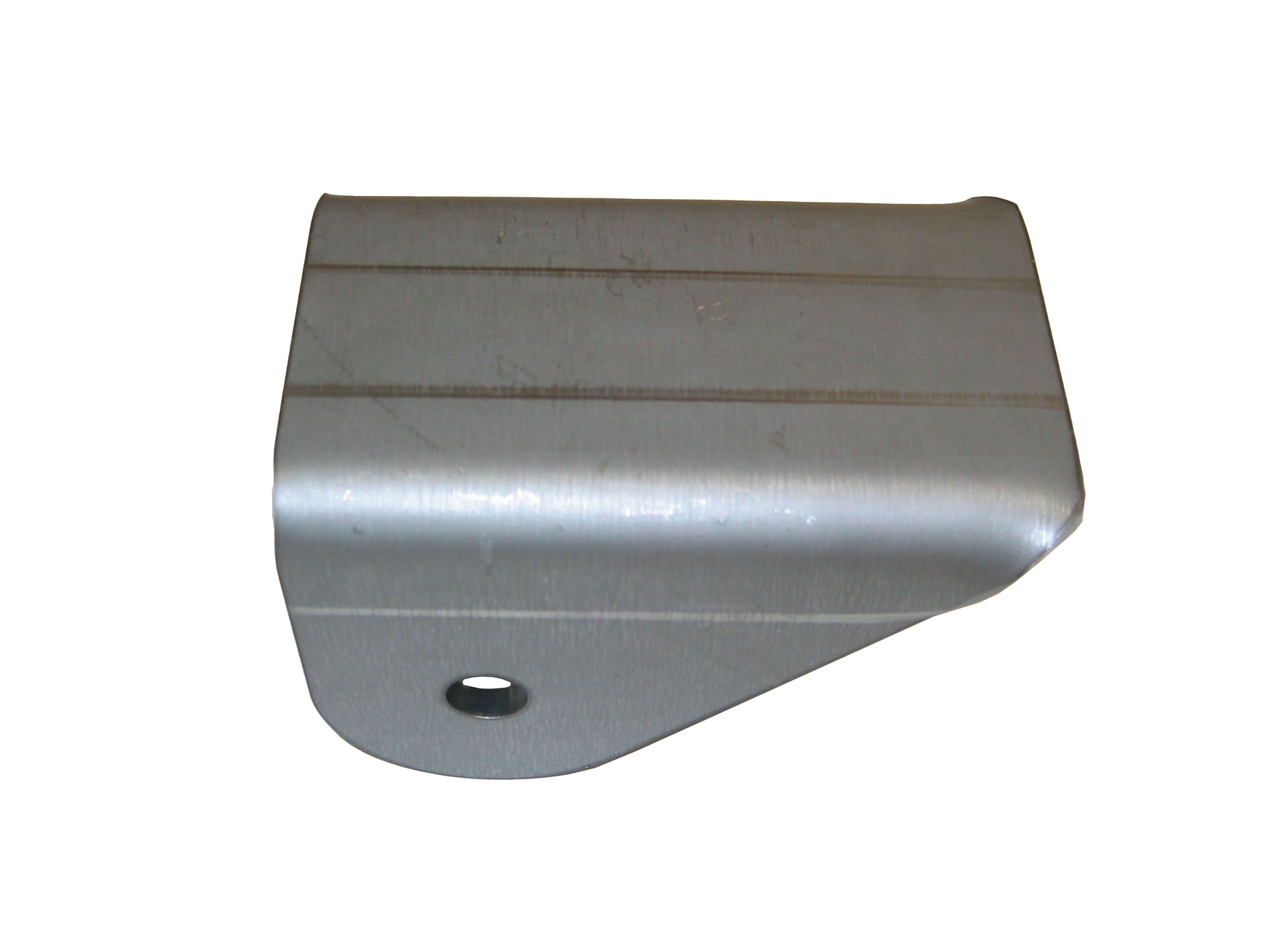

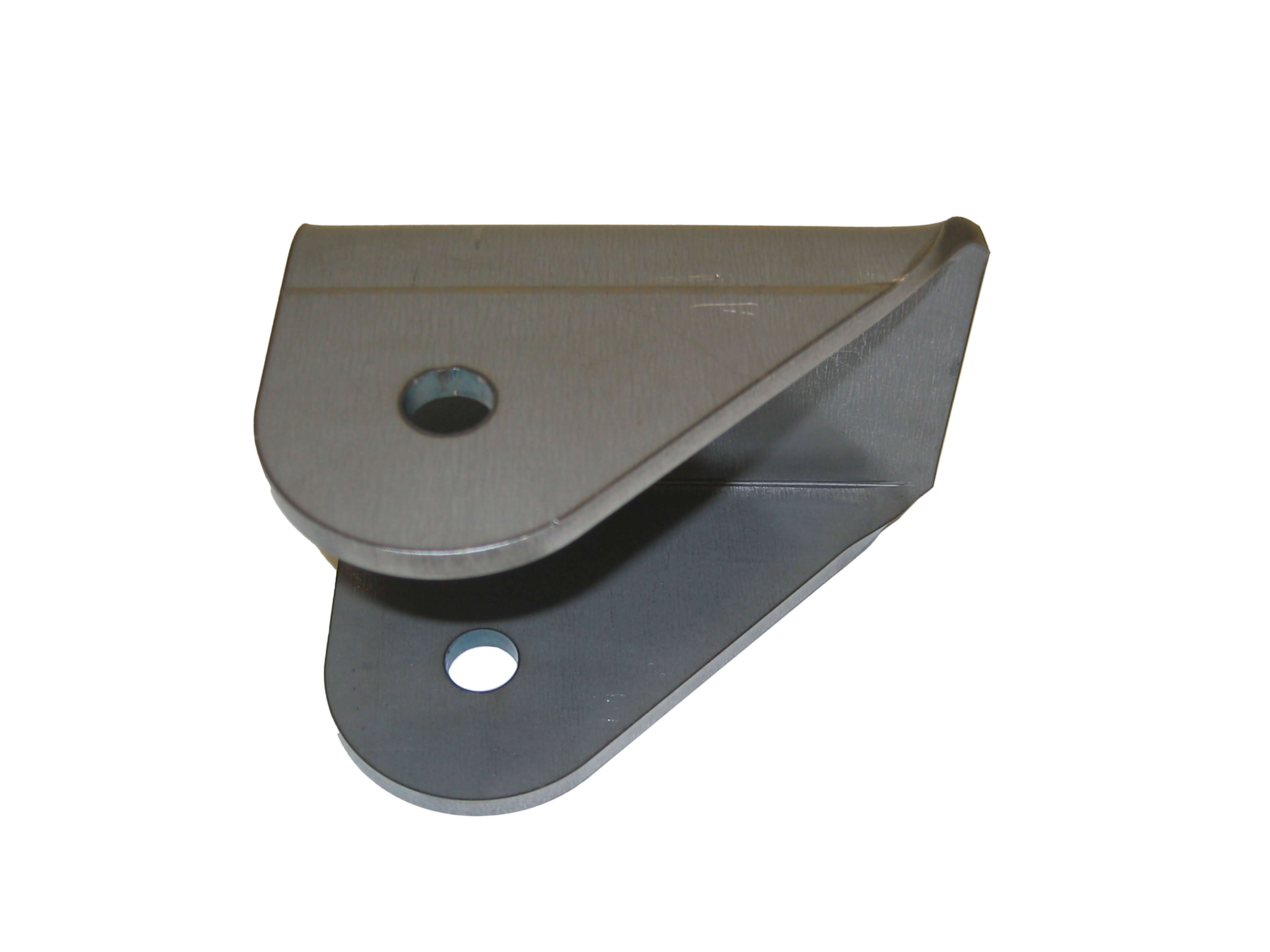

Constructed of 1/4" thick laser-cut steel, Rusty's Control Arm Frame Mounts provide a clean, easy way to add custom control arm mounts or leaf spring mounts to frame rails. The mounts feature a flat surface that offers 5" of weld length. The mounts have 9/16" bolt holes and feature an inside spacing of 3", which accommodate a large spherical joint with misalignment spacers, or conventional 3" wide spring bushings. Sold in pairs.
• Constructed of 1/4" thick steel
• Flat surface enables the mount to be welded to the bottom of a frame
• 9/16" mounting holes
• Inside spacing is 3"
