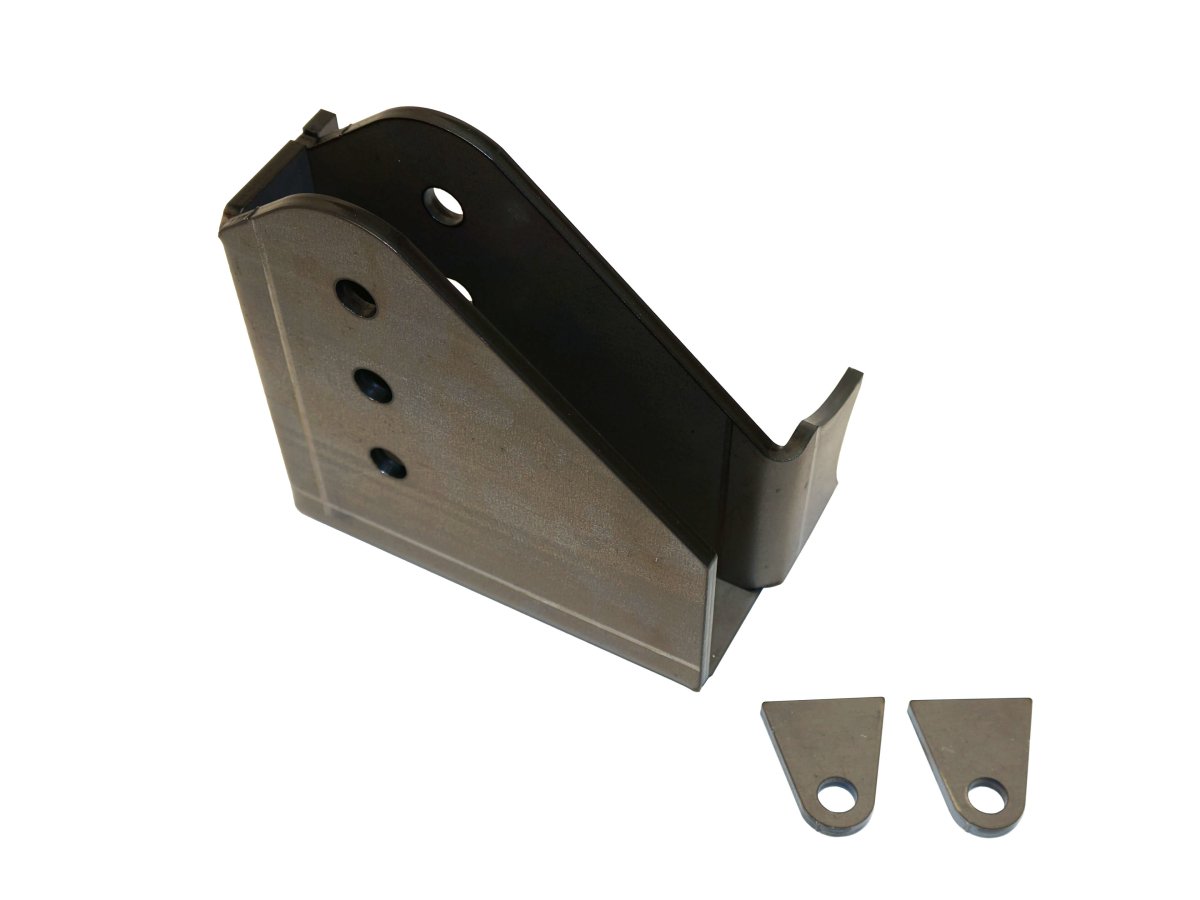

Rusty's Raised Track Bar Mount for Custom Axles

$120.00

Rusty's Raised Track Bar Mount was designed for custom axles and applications that need...

Rusty's Raised Track Bar Mount was designed for custom axles and applications that need a compact, versatile mount. Constructed of 1/4" thick laser-cut steel, the bracket is then CNC formed for a precision fit. The bracket includes three 9/16" track bar mounting holes spaced 1.5 inches apart so that the track bar's operating angle can be fine-tuned to eliminate bump-steer and other undesirable handling characteristics. The bracket ships raw and requires welding for installation. The bracket also includes two tabs for mounting a steering stabilizer or steering ram.

We often see fabricators using this bracket for Super Duty axle swaps and many other applications where space is limited for a track bar mount.

KEY FEATURES:

  • Constructed of 1/4" thick laser-cut steel
  • Perfect for custom axle swaps where space for a track bar mount is limited
  • Three 9/16" diameter track bar mounting holes are built in spaced 1.5 inches apart
  • Two tabs are included for mounting a steering stabilizer or steering ram
  • Made in the USA

    $120.00
