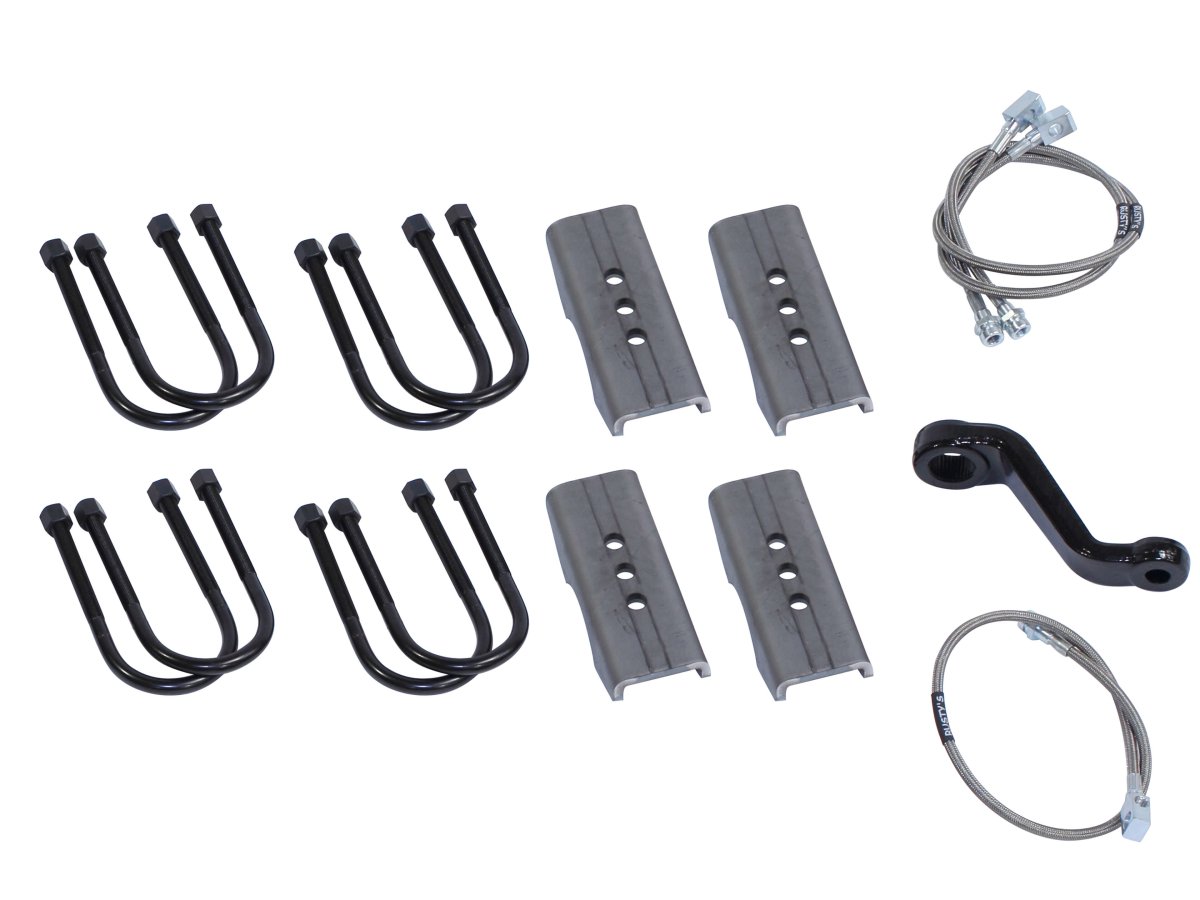

The Rusty’s SOA kit consists of the parts needed to relocate the springs from the stock location under the axle to on top of the axle. This kit will net 5.5 inches of lift with stock springs or 7 inches using the Rusty’s SOA springs. This will greatly increase ride height and increase articulation. This kit comes with extended anti-wrap weld-on spring perches, front and rear stainless steel brake lines, drop pitman arm, and front and rear U- bolts.
• Front Spring Perches
• Rear Spring Perches
• Front and Rear Control Brake Lines
• Drop Pitman Arm - To be used with Power Steering Models Only
• Front and Rear Grade 8 U-bolts
Note: This kit does require welding and needs to be done by a certified welder or fabricator.
Note: Rusty recommends installing a Slip Yoke Eliminator Kit and CV Driveshaft Combo Kit to prevent driveline vibrations with this suspension system. This kit provides additional driveshaft length along with provisions to run a CV (Constant Velocity) joint at the transfer case.
